Name: SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe
Brand: Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd.
SKU: HY070703
Price: 110.00 USD
Availability: InStock

Casa > PRODUTOS > Johnson Wedge Wire Screens >

SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe

SS304 Wedge Wire Screen Pipe

Wedge Wire Screen Pipe

stainless steel wedge wire screen

Lugar de origem:

Cidade de Hengshui, Hebe Provincei, China

Marca:

HengYuan

Certificação:

ISO,CO,FORM E,CIQ, etc

Número do modelo:

HY070703

Contacte-nos

Peça umas citações

Detalhes do produto

Nome:

Tubo de tela de fio de rocha de rocha contínua

Materiais:

Aço inoxidável 304

Diâmetro:

25 mm

Comprimento:

200 mm

Espinha:

0.25mm

Fio:

fio do Vee de 1.5*2mm

Rodas de apoio:

fio do Vee de 2*3mm

Fim:

De peso igual ou superior a 20 g/m2

Técnica:

Soldadura do ponto

Características:

não-obstrução

Aplicação:

filteration

Pacote:

Caixa de madeira

Tipo de Negócio:

Fabricante

Teste da máquina:

Fornecido

Produtos relacionados

Vídeo

Continuous Slot Wedge Wire Screen Cylinders For Oil Well

Obtenha o melhor preço

Vídeo

OD 2-3/8" Slot 100μm SS304 Johnson Type Wedge Wire Screen Filter

Obtenha o melhor preço

Vídeo

Stainless Steel 316L 0.5mm Slot Wedge Wire Oil Screen Pipe 2-7/8" OD

Obtenha o melhor preço

Vídeo

Full Welded Wedge Wire Wound Screen Of Stainless Steel

Obtenha o melhor preço

Contacte-nos

86-318-7565918

hengyuan1@aphywire.com

86-318-7565919

Contato agora

Descrição do produto

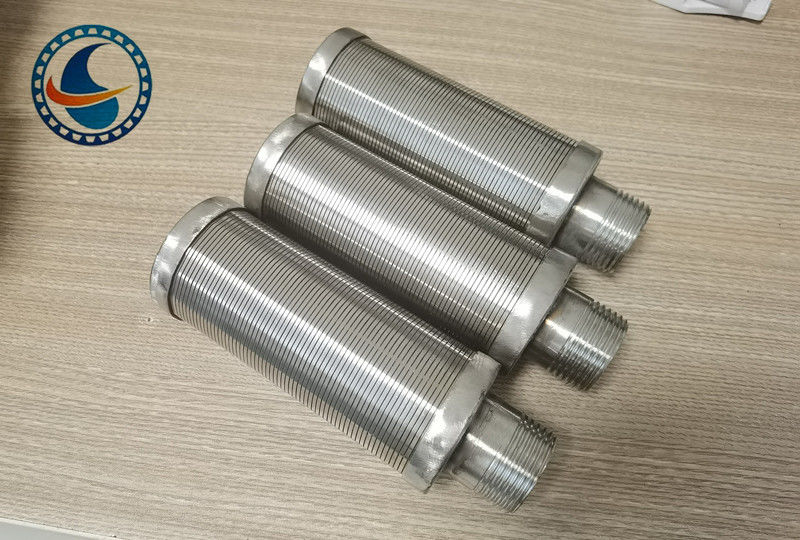

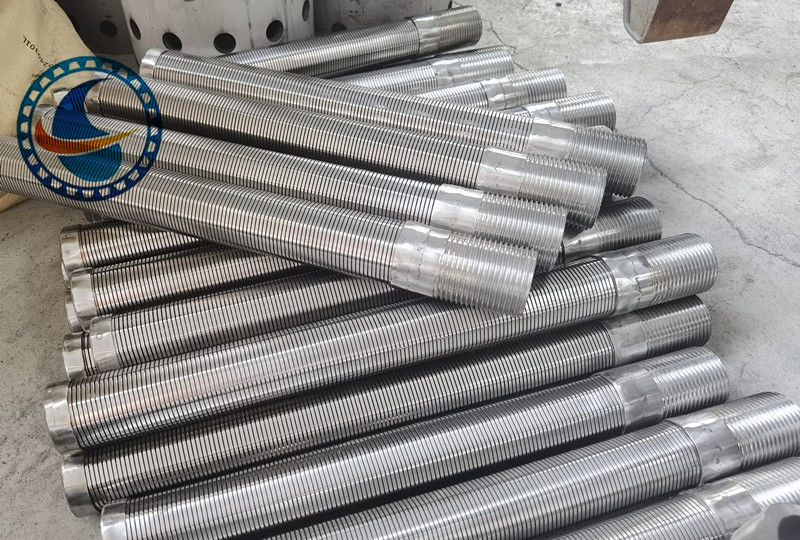

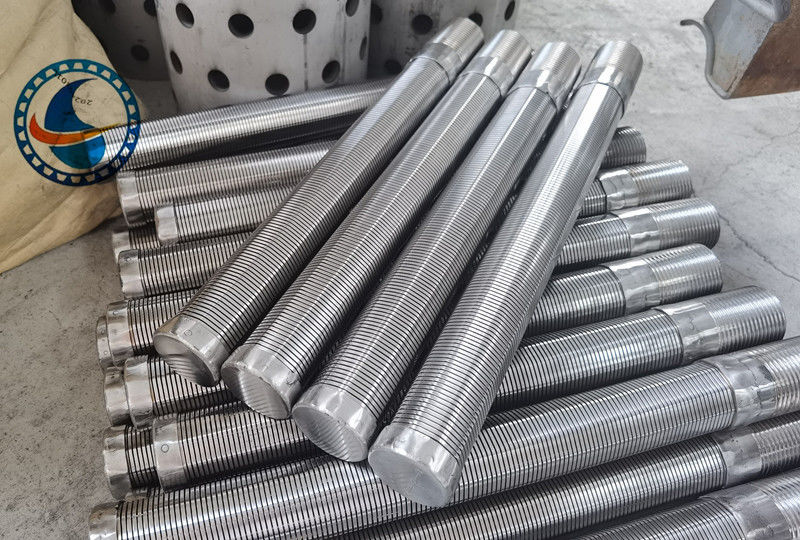

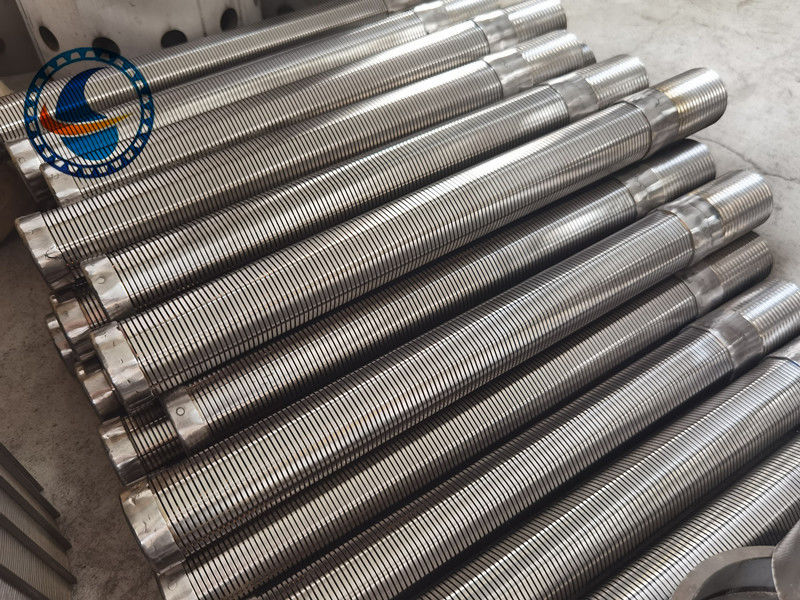

SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe

The SS rod based continuous slot wedge wire screen pipe liners which require external supports and also self-supporting balanced baskets for the centrifuge manufacturers.

These rod based continuous slot wedge wire screen pipes are more complex than the other types of screens requiring extra strength to withstand the stresses of centrifuge dryers.

These rod based continuous slot wedge wire screen pipes are typically used in mineral processing for coal, potash, salt, sand, pulp,paper and a variety of chemicals. They are also used for refuse removal from oil and gas drillers.

Benefits of SS Rod Based Continuous Slot Wedge Wire Screen Pipe

High shive and stickies removal efficiency.
Maximized flow capacity.
Durable,extended operating life.
Application flexibility.
Dimensional accuracy.

Material	Stainless steel 304, 316, 316L
Diameter	26mm-1300mm
Shape	Cylindrical
Slot	0.02-100mm
Thickness	4mm
Feature	Geological formations comprised of small, fine particles Water wells where gravel packs will be installed Thin aquifers, where maximum open area is required Large-and small-diameter deep wells
Application	--Architecture & Construction --Food & Beverage Screens --OEM Screen Components --Refining & Petrochemical --Waste Water Treatment --Water Well & Oil well --Coal & Mine --Chemical industry --Pharmacy --Food and beverage --Metallurgy --Coal mining --Environmental protectio

Rod Based Continuous Slot Wedge Wire Screen Pipe Characteristics:

1. Wedge Wire Screen Pipe has high mechanical strength, can bear large pressure drop.

2. Wedge Wire Screen Pipe has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

3. The wedge type slot can improve backflushing and regeneration performance.

4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

SS304 Rod Based Continuous Slot Wedge Wire Screen Pipe 0
